ESP-32 Espruino GPS Tracker

// Software UART
const serial = new Serial();

serial.setup(9600, { rx: a_pin, tx: a_pin });

const SERIAL_FREQ = 115200;

// * Pins
const PIN_MODEM_TX = D26; // Modem TX
const PIN_MODEM_RX = D27; // Modem RX
const PIN_MODEM_PWR = D4; // Modem power pin
const PIN_MODEM_RST = D5; // Modem reset pin

// * Modem Commands
const CMD_READ_MODEM_VERSION = 'AT+SIMCOMATI';

// Initialize UART for SIM7670E
Serial3.setup(SERIAL_FREQ, { tx: PIN_MODEM_TX, rx: PIN_MODEM_RX });
Serial3.on('data', (data) => {
  	console.log(`'${data}'`);
});

// Setup pins
PIN_MODEM_PWR.mode('output');
PIN_MODEM_RST.mode('output');

console.log(`Resetting modem`);

// * Power on SIM7670E (hold PWRKEY high for ~1s)

// Reset modem
PIN_MODEM_RST.reset();

// Power modem
PIN_MODEM_PWR.set();

setTimeout(() => {
	console.log('Reading modem version');

	Serial3.write(`${CMD_READ_MODEM_VERSION}\r\n`);
}, 1000);

Modem says: 'AT+SIMCOMATI
Manufacturer: INCORPORATED
Model: A7670E-FASE'

import { SIM7670E } from '@espruino/modules';

// * Pins
const PIN_MODEM_TX = D27; // Modem TX
const PIN_MODEM_RX = D26; // Modem RX
const PIN_MODEM_PWR = D4; // PWR
const PIN_MODEM_RST = D5; // Reset

const gpsModule = new SIM7670E(
	Serial3,
	{
		PIN_MODEM_RX: PIN_MODEM_TX,
		PIN_MODEM_TX: PIN_MODEM_RX,
		PIN_MODEM_PWR,
		PIN_MODEM_RST,
	},
);

gpsModule
	.readVersion()
	.then((version) => {
		console.log('Modem version:', version);
	})
	.catch((error) => {
		console.error('Error reading modem version:', error);
	});

// Read the current GPS position and POST it to a server as JSON.
gpsModule
	.readGPSPositionOrThrow()
	.then((position) => {
		console.log('GPS position:', position);

		return gpsModule.postJSON('http://example.com/positions', {
			latitude: position.latitude,
			longitude: position.longitude,
			altitude: position.altitude,
			timestamp: Date.now(),
		});
	})
	.then((response) => {
		console.log('Position posted:', response);
	})
	.catch((error) => {
		console.error('Error reporting GPS position:', error);
	});

import { SIM7670E } from '@espruino/modules';

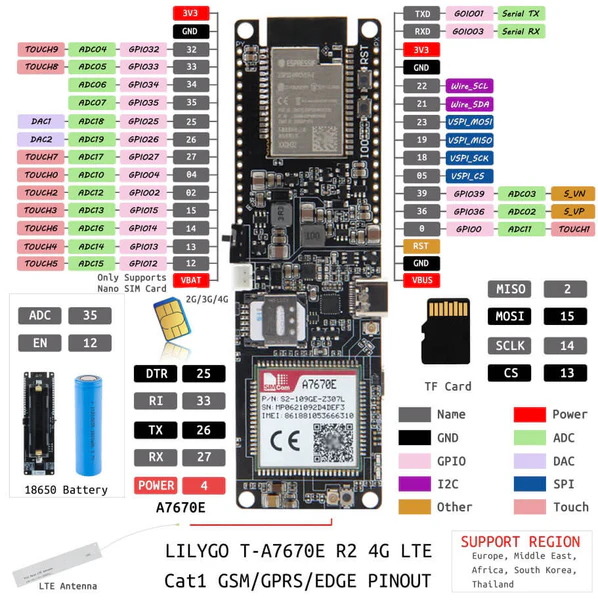

// * Pins (LilyGo T-A7670E)
const PIN_MODEM_TX = D27; // Modem TX | 26
const PIN_MODEM_RX = D26; // Modem RX | 27
const PIN_MODEM_PWR = D4; // PWR | 4
const PIN_MODEM_RST = D5;

// Where each fix is POSTed. Kept OUT of this (public) source and read from the
// device's flash instead, so the URL lives only on your tracker. Set it once from
// the Espruino Web IDE console — it survives reprograms and power-offs:
//
//   require('Storage').writeJSON('tracker-config', {
//     locationUrl: 'https://example.com/api/location',
//   });
//
// `readJSON(name, true)` returns undefined (rather than throwing) when it's unset.
const config = require('Storage').readJSON('tracker-config', true) || {};
const LOCATION_URL = config.locationUrl;

// Report every 10 minutes (the first goes out on boot).
const REPORT_INTERVAL_MS = 10 * 60 * 1000;

// On a cold power-up the A7670E needs ~10s before its UART answers AT commands;
// wait it out so the first poll doesn't fail.
const MODEM_COLD_BOOT_MS = 12 * 1000;

/**
 * Espruino calls onInit() automatically on every boot, but only once the code is
 * saved to flash (run save() in the Web IDE; type onInit() to start it before
 * saving). Hardware setup lives here because save() restores JS state but not the
 * hardware config, so it must be re-applied on each boot.
 */

function onInit(

) {
	if (!LOCATION_URL) {
		throw new Error(
			"No locationUrl in flash. Set it once with: require('Storage').writeJSON('tracker-config', { locationUrl: 'https://…' });",
		);
	}

	// The tracker never uses WiFi, so drop the default softAP (saves power). On
	// STOCK Espruino ≤2v29 this is also mandatory: the ESP32 port truncates >64-byte
	// UART bursts (https://github.com/espruino/Espruino/issues/2718) and WiFi makes
	// it far worse — stock firmware additionally needs the driver's baud rate set to
	// 19200. This board runs a build with the fix applied, so 115200 + WiFi works.
	require('Wifi').stopAP();

	console.log('Started. Initializing modem ...');

	const modem = new SIM7670E(
		Serial3,
		{
			// TX/RX are crossed: the modem's TX is the ESP32's RX and vice versa.
			PIN_MODEM_RX: PIN_MODEM_TX,
			PIN_MODEM_TX: PIN_MODEM_RX,
			PIN_MODEM_PWR,
			PIN_MODEM_RST,
		},
	);

	// Expose the modem on the global object so you can poke it live from the Web
	// IDE console while it's running — e.g. test data without waiting for a cycle:
	//   modem.getText('http://neverssl.com').then(print).catch(print);
	//   modem.setApn('your.apn').then(() => modem.getText('http://neverssl.com')).then(print).catch(print);
	global['modem'] = modem;

	// One report cycle: read one GPS fix and POST it. With no fix we POST an empty
	// body, which the backend records as a life-sign so the page shows the tracker
	// is alive. Every step's error is swallowed, so one bad cycle never stops the
	// schedule — the loop survives no fix, no network, or a failed POST forever.
	const reportLocation = () => {
		console.log('Acquiring GPS fix (up to 3 min; needs sky view) ...');

		return modem
			.readGPSPositionOrThrow()
			.then((position) => {
				console.log('GPS position:', position);

				// Besides the coordinates, pass along whatever quality/motion info the
				// fix carried (undefined fields simply drop out of the JSON): satellite
				// count, altitude, speed, course and the DOP precision values.
				return modem.postJSON(LOCATION_URL, {
					lat: position.latitude,
					lng: position.longitude,
					sats: position.satellites,
					alt: position.altitude,
					speedKmh: position.speedKmh,
					course: position.courseDeg,
					pdop: position.pdop,
					hdop: position.hdop,
					vdop: position.vdop,
				});
			})
			.catch((error) => {
				// No fix is the EXPECTED outcome indoors — not an error. Send a
				// position-less life-sign instead so the backend still sees a pulse.
				console.log('No GPS fix (' + error.message + ') - sending life-sign only');

				return modem.postJSON(LOCATION_URL, {});
			})
			.then((response) => {
				// postJSON resolves with the HTTP response body ('' when the backend
				// sends none); reaching here at all means the server answered 2xx.
				console.log('Reported OK:', response.trim());
			})
			.catch((error) => {
				// Reports genuinely failing (no network, server down/refusing) IS
				// worth surfacing - but as one tidy line, not a stack of Errors.
				console.log('Report failed: ' + ((error && error.message) || error));
			});
	};

	// One self-scheduling loop, forever: the next cycle is queued only once the
	// current one has fully settled (setTimeout, NOT setInterval), so cycles can
	// never overlap or stack no matter how long a GPS attempt or a slow POST takes.
	// reportLocation always resolves, so this runs unattended indefinitely — under
	// open sky or parked in a garage for a week.
	const runReportCycle = () =>
		void reportLocation()
			.then(() => {
				setTimeout(runReportCycle, REPORT_INTERVAL_MS);
			});

	// After the cold-boot wait: start watching coverage, set the APN once, then run
	// the report loop. onNetworkStatus polls in the background; the driver serialises
	// all AT commands internally, so its polls and the GPS reads take turns on the
	// shared link rather than colliding.
	setTimeout(() => {
		// Live coverage — no_service / gsm / edge / lte — the states a phone's
		// status-bar icon shows. Handy when a report fails: was there a network?
		modem.onNetworkStatus((bearer) => {
			console.log('Connection:', bearer);
		});
		// Kick off the reporting cycle
		runReportCycle();
	}, MODEM_COLD_BOOT_MS);
}
